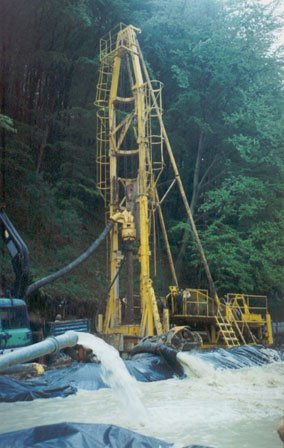

Drilling rig BALLERINI type Par 1000

- method of drilling :
CASED DRILLING BY CABLE
TOOL PERCUSSION, REVERSE

- mast : 12,0m
- pull- up : 35t
- 100 HP Diesel engine, 2400 rpm
- diameter of casing :
- Ø40" - total depth 50m
- Ø16" - total depth 80m
- rotary table
- drilling rods for reverse method
Ø219mm

Bušilica Ballerini tip Par 1000 (Benotto sistem), godina proizvodnje 1987.

( metode bušenja: laviranje i utiskivanje kolone, reversna)

•  visina tornja 12,0 metara

•  nosivost tornja 35 tona

•  motor diesel, 110 KS, 2400 o/min

•  max. promjer laviranja Ø 40" do dubine od 50 metara

•  max. promjer laviranja Ø 32" do dubine od 80 metara

•  reversna glava Massenza

bušaće šipke: za reversnu metodu Ø 219 mm
